Airports for X-Plane

Antalya

Airport details

CountryTurkey
StateAntalya Province
RegionLT
AirspaceAnkara Ctr
MunicipalityAntalya
Elevation171ft (52m)
TimezoneGMT +3
Coordinates36.91651, 30.78970
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTAI
IATA codeAYT
FAA coden/a

Communication

Antalya ATIS118.275
Antalya Clearance DEL123.750
Antalya Ground Control121.900
Antalya Tower125.000
Antalya Tower126.100
Antalya Approach122.050
Antalya Approach128.300

Approach frequencies

LOCRW18L109.7518.00mi
ILS-cat-IIRW36R108.118.00mi
ILS-cat-IRW18C108.718.00mi
ILS-cat-IRW36C110.318.00mi
3° GSRW36R108.118.00mi
3° GSRW18C108.718.00mi
3° GSRW36C110.318.00mi

Runway info

Runway 18L / 36R
 length3403m (11165ft)
 bearing188° / 8°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)
Runway 18C / 36C
 length3419m (11217ft)
 bearing188° / 8°
 width45m (148ft)
 surfaceconcrete
 blast zone52m (171ft) / 58m (190ft)
Runway 18R / 36L
 length3010m (9875ft)
 bearing188° / 8°
 width45m (147ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

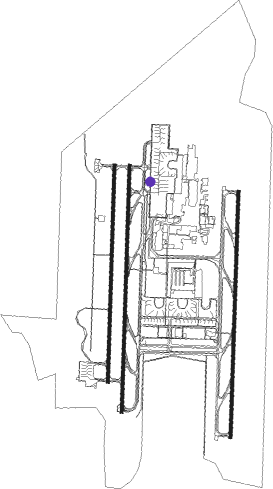

Airport layout - taxiway location RAMP|32


Taxiway locations

 A  B  B1  B2  B3  C  C1  C2
 D  D1  D2  E  F  G  H  H1
 K  M  N  P  RAMP|16  RAMP|17  RAMP|18  RAMP|19
 RAMP|20  RAMP|21  RAMP|22  RAMP|23  RAMP|24  RAMP|25  RAMP|26  RAMP|27
 RAMP|28  RAMP|29  RAMP|30  RAMP|31  RAMP|32  RAMP|33  RAMP|34  RAMP|35
 RAMP|36  RAMP|37  RAMP|38  RAMP|39  RAMP|90  S  T  U
 V  Y
Parking locations

 10A  10B  11A  11B  12A  12B  13A  13B
 14  15  16  17  18  19  20  21
 22  23  24  25  26  27  28  29
 30  31  32  33  34  35  36  37
 38  39  4  40  41  42  43  44
 45  46  47  48  49  5  50  51
 52  53  54  55  56  57  58  59
 6  60  61  62A  62B  63  64A  64B
 65A  65B  66  67  68  69  7  70
 71  72  73  74  75  76  77  78
 79  8  80  81  82  83  84  85
 86  87  88  89  9  90  91  92
 93  94  95  96  97  GA  Heli  SW

Nearby beacons

codeidentifierdistbearingfrequency
AYTANTALYA VOR/DME0.348°114
LRALARA (ANTALYA) VOR/DME187°116.15
ANTDME-ILS2.4181°109.10
YTANTALYA NDB2.4181°302
RALARA (ANTALYA) NDB2.7159°329
GEYANTALYA NDB16.2262°413
IPTISPARTA NDB59.5334°349

Departure and arrival routes

Transition altitude15000ft
SID end pointsdistanceoutbound heading
RW18C
 EKNU1T, EKNU1E73mi1°
 HISA1E, HISA1T80mi32°
 DAML1Y30mi34°
 PIDE1E37mi77°
 ADBE1E46mi91°
 KONA1Y30mi92°
 ADAS1Y30mi105°
 KULO1E41mi106°
 MANA1Y30mi111°
 GELK1E47mi111°
 DERY1Y30mi177°
 TOMB1E53mi178°
 ALPA1Y38mi264°
 LORK1E50mi264°
 EVBO1E57mi282°
 LAMS1Y, LAMS1Z43mi283°
 NESI1E57mi292°
 EKSE1Y, EKSE1E, EKSE1T59mi353°
 KUMR1Y30mi353°
RW18L
 EKNU1S, EKNU1P, EKNU1F73mi1°
 HISA1S, HISA1F80mi32°
 DAML1B, DAML1F30mi34°
 PIDE1S, PIDE1F37mi77°
 ADBE1S, ADBE1F46mi91°
 KONA1B, KONA1F30mi92°
 ADAS1F, ADAS1B30mi105°
 KULO1S, KULO1F41mi106°
 GELK1S, GELK1F47mi111°
 MANA1F, MANA1B30mi111°
 DERY1B, DERY1F30mi177°
 TOMB1F, TOMB1S53mi178°
 ALPA1F, ALPA1B38mi264°
 LORK1F, LORK1S50mi264°
 EVBO1S, EVBO1F57mi282°
 LAMS1F, LAMS1B43mi283°
 NESI1F, NESI1S57mi292°
 ERGI1F, ERGI1B42mi292°
 BRON1B, BRON1F30mi309°
 EKSE1F, EKSE1P, EKSE1S, EKSE1Z59mi353°
 KUMR1F, KUMR1B30mi353°
RW18R
 DAML1Y30mi34°
 KONA1Y30mi92°
 ADAS1Y30mi105°
 MANA1Y30mi111°
 DERY1Y30mi177°
 ALPA1Y38mi264°
 LAMS1Y, LAMS1Z43mi283°
 KUMR1Y30mi353°
RW36C
 EKNU1B73mi1°
 HISA1B80mi32°
 DAML1T30mi34°
 PIDE1B37mi77°
 ADBE1B46mi91°
 KONA1T30mi92°
 ADAS1T30mi105°
 KULO1B41mi106°
 GELK1B47mi111°
 MANA1T30mi111°
 DERY1T30mi177°
 TOMB1B53mi178°
 LORK1B50mi264°
 ALPA1T38mi264°
 EVBO1B57mi282°
 LAMS1T43mi283°
 ERGI1T42mi292°
 NESI1B57mi292°
 BRON1T30mi309°
 EKSE1B59mi353°
 KUMR1M, KUMR1T30mi353°
RW36L
 DAML1T30mi34°
 KONA1T30mi92°
 ADAS1T30mi105°
 MANA1T30mi111°
 DERY1T30mi177°
 ALPA1T38mi264°
 LAMS1T43mi283°
 ERGI1T42mi292°
 BRON1T30mi309°
 KUMR1M, KUMR1T30mi353°
RW36R
 EKNU1K, EKNU1C73mi1°
 HISA1K, HISA1C80mi32°
 DAML1N, DAML1H30mi34°
 PIDE1C, PIDE1K37mi77°
 ADBE1C, ADBE1K46mi91°
 KONA1H, KONA1N30mi92°
 ADAS1H, ADAS1N30mi105°
 KULO1K, KULO1C41mi106°
 MANA1N, MANA1H30mi111°
 GELK1K, GELK1C47mi111°
 DERY1N, DERY1H30mi177°
 TOMB1C, TOMB1K53mi178°
 ALPA1H, ALPA1N38mi264°
 LORK1C, LORK1K50mi264°
 EVBO1K, EVBO1C57mi282°
 LAMS1N, LAMS1H43mi283°
 ERGI1H, ERGI1N42mi292°
 NESI1K, NESI1C57mi292°
 BRON1H, BRON1N30mi309°
 EKSE1C, EKSE1K59mi353°
 KUMR1C, KUMR1H, KUMR1N30mi353°

STAR starting pointsdistanceinbound heading
ALL
 ALPA1G, ALPA1R38.384°
 LAMS1R43.1103°
 ERGI1R, ERGI1G42.2112°
 BRON1G, BRON1R29.9129°
 KUMR1G, KUMR1R30.0173°
 DAML1R30.3214°
 KONA1R30.1272°
 ADAS1R30.4285°
 MANA1R30.2291°
 DERY1R30.1357°
RW18 (ALL)
 LORK1D49.684°
 NESI1D57.1112°
 KOZL1D48.8129°
 BABS1D69.9156°
 EKSE1D58.7173°
 HISA1D80.4212°
 PIDE1D37.2257°
 ADBE1D45.9271°
 KULO1D41.1286°
 GELK1D47.4291°
 TOMB1D52.6358°
RW18L
 ALPA1E38.384°
 LAMS1E43.1103°
 ERGI1E42.2112°
 BRON1E29.9129°
 KUMR1E30.0173°
 DAML1E30.3214°
 KONA1E30.1272°
 ADAS1E30.4285°
 MANA1E30.2291°
 DERY1E30.1357°
RW36 (ALL)
 LORK1A49.684°
 NESI1A57.1112°
 KOZL1A48.8129°
 BABS1A69.9156°
 EKSE1A58.7173°
 HISA1A80.4212°
 PIDE1A37.2257°
 ADBE1A45.9271°
 KULO1A41.1286°
 GELK1A47.4291°
 TOMB1A52.6358°
RW36R
 ALPA1E38.384°
 LAMS1E43.1103°
 ERGI1E42.2112°
 BRON1E29.9129°
 KUMR1E30.0173°
 DAML1E30.3214°
 KONA1E30.1272°
 ADAS1E30.4285°
 MANA1E30.2291°
 DERY1E30.1357°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADAS1ELRANDBright182 (2)°> 3000ft1.0min timed230
ADAS1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
ADBE1AKONAKVHFright79 (259)°> 11000ft1.0min timedICAO rules
ADBE1DBIBEVVHFleft83 (263)°> 9000ft1.0min timedICAO rules
ALPA1ELRANDBright182 (2)°> 3000ft1.0min timed230
ALPA1GGEYFIXright318 (138)°> 11000ft1.0min timedICAO rules
ALPA1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
BABS1AOKPELVHFright357 (177)°> 11000ft1.0min timedICAO rules
BABS1DERKEGVHFright349 (169)°> 11000ft1.0min timedICAO rules
BRON1ELRANDBright182 (2)°> 3000ft1.0min timed230
BRON1GGEYFIXright318 (138)°> 11000ft1.0min timedICAO rules
BRON1RD310TVHFright310 (130)°10000ft - 24000ft1.0min timedICAO rules
BRON1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
DAML1ELRANDBright182 (2)°> 3000ft1.0min timed230
DAML1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
DERY1ELRANDBright182 (2)°> 3000ft1.0min timed230
EKSE1AOKPELVHFright357 (177)°> 11000ft1.0min timedICAO rules
EKSE1DERKEGVHFright349 (169)°> 11000ft1.0min timedICAO rules
ERGI1ELRANDBright182 (2)°> 3000ft1.0min timed230
ERGI1GGEYFIXright318 (138)°> 11000ft1.0min timedICAO rules
ERGI1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
GELK1AADASUVHFleft130 (310)°> 8000ft1.0min timedICAO rules
GELK1DBIBEVVHFleft83 (263)°> 9000ft1.0min timedICAO rules
HISA1ASOSEMVHFleft25 (205)°> 12000ft1.0min timedICAO rules
HISA1DASLOSVHFleft2 (182)°> 12000ft1.0min timedICAO rules
KONA1ELRANDBright182 (2)°> 3000ft1.0min timed230
KONA1RD087OVHFright87 (267)°5000ft - 24000ft1.0min timedICAO rules
KONA1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
KOZL1AOKPELVHFright357 (177)°> 11000ft1.0min timedICAO rules
KOZL1DEKMUSVHFright272 (92)°> 11000ft1.0min timedICAO rules
KULO1AADASUVHFleft130 (310)°> 8000ft1.0min timedICAO rules
KULO1DBIBEVVHFleft83 (263)°> 9000ft1.0min timedICAO rules
KUMR1ELRANDBright182 (2)°> 3000ft1.0min timed230
KUMR1GGEYFIXright318 (138)°> 11000ft1.0min timedICAO rules
KUMR1RD310TVHFright310 (130)°10000ft - 24000ft1.0min timedICAO rules
KUMR1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
LAMS1ELRANDBright182 (2)°> 3000ft1.0min timed230
LAMS1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
LORK1AALPAYVHFright230 (50)°> 13000ft1.0min timedICAO rules
LORK1DALPAYVHFright230 (50)°> 13000ft1.0min timedICAO rules
MANA1ELRANDBright182 (2)°> 3000ft1.0min timed230
MANA1RTOPUZVHFright182 (2)°2700ft - 14000ft1.0min timedICAO rules
NESI1AERGINVHFright293 (113)°> 11000ft1.0min timedICAO rules
NESI1DEKMUSVHFright272 (92)°> 11000ft1.0min timedICAO rules
PIDE1DBIBEVVHFleft83 (263)°> 9000ft1.0min timedICAO rules
TOMB1ANAVKOVHFright210 (30)°> 7000ft1.0min timedICAO rules
TOMB1DDERYAVHFright149 (329)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
